The TAICENN ABOX-E7 series industrial computer products have proven their features and advantages in the digital medical operating room. The installation of a high-resolution full view camera in the operating room is able to achieve 360-degree monitoring, to meet the supervision of the dynamic information in the operating room and the hospital administrator’s daily viewing. High-resolution field camera is installed on the shadow less arm to collect video information in the field, and the whole process of high-definition recording is used for remote teaching, remote expert consultation, remote surgery guidance and other applications. The signal transmission from the operating room to the central computer room, classroom, and consultation room, using digital fiber optic cable to ensure high-quality and clear image and voice transmission, to achieve surgical video and medical image data sharing, full HD surgical live broadcast, surgical teaching and remote Consultation and other applications. ABOX-E7 main features: Intel 6/7-gen Skylake desktop multi-core processor, powerful computing for vision and multi-tasking computing; High-strength & compact body design with mold production, suitable for high-integration applications;  Efficient cooling system design to ensure long-term stability of the product; Multiple interface support with modular design, to solve multiple control and acquisition control solution; Large-capacity memory and RAID storage support, for big data exchange and data security; 6*Intel network modular combination for complex video capture; 9~36V vehicle power supply solution, in line with ISO 7673-2 standard, supporting complex power supply environment; -20~70 °C wide temperature work For more information on these products please visit our webpage – http://crystal-display.com/products/embedded-systems/ For more information including pricing and a data sheet please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.

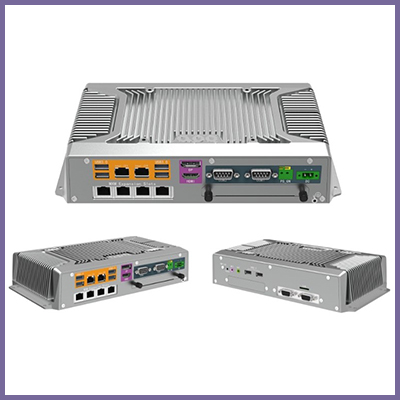

High performance, high quality, fanless embedded boxed computer series ABOX-E8. Based on our TAICENN modularization 2.0 design & manufacturing concept, this embedded industrial computer ABOX-E8 is positioned in the lower end of the market compared to the ABOX-E7 series but with a fanless design. It is designed with the high performing, Intel Celeron 3855U and CoreTM I3-6100U/I5-6200U low power CPU processors. ABOX-E8 series supports MXM 3.0 expansion, providing optional 6* GLAN expansion and 4* COM expansion. As well as this the ABOX-E8 series is designed with 2* mini-PCIe slot, for some specific card expansions. For more information on these products please visit our webpage – http://crystal-display.com/products/embedded-systems/ For more information including pricing and a data sheet please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.

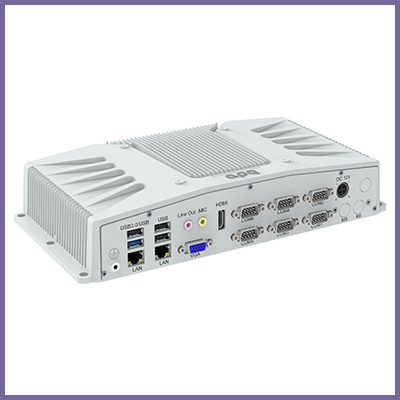

ABOX-E6: Super competitive modularized & mould produced rich I/O embedded box computer  Introducing our low power & rich I/O embedded Boxed PC model ABOX-E6, which is modularized & mould produced with quick delivery. Main features: Intel Baytrail J1900 Quad-core 2.0 Ghz, TDP=10W Integrated with 2* Intel GLAN, support jumbo frame 8* USB ports, including 7* USB2.0 and 1* USB3.0 6* DB9 RS232, support 2* RS485/RS422, optional max. up to 10 serial ports Dual display, 1* HDMI, 1* VGA ports Cable-less design, fanless design, large area fin heat sink Support 3G/4G/LTE, Wi-Fi/BT wireless expansion compact die casting, modularized design & mass mould produced. Why is the ABOX-E6 price so competitive compared to similar in the market??? Modularized design, cable-less design Mass die-casting mold produced, mass quantity cost down With a one week lead time from order and a 2 year warranty period what more could you wish for in an embedded boxed PC design? For more information on these products please visit our webpage – http://crystal-display.com/products/embedded-systems/ For more information including pricing and a data sheet please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.

The emergence of machine vision systems falls in line with the improvement of current intelligent manufacturing, especially in some refined processes and high-risk working environments. The detection rate is low, and labour is time-consuming and labour-intensive. Machine vision applications greatly improve inspection accuracy and productivity. ABOX-E7 series uses the full-performance Skylake platform’s desktop processor (6th/7th), equipped with Q170 industrial grade chip, combined with Intel Media SDK to achieve multi-channel graphics operation, integrated graphics card through excellent heat dissipation and power design in the embedded chassis. For more information on these products please visit our webpage – http://crystal-display.com/products/embedded-systems/ For more information including pricing and a data sheet please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.

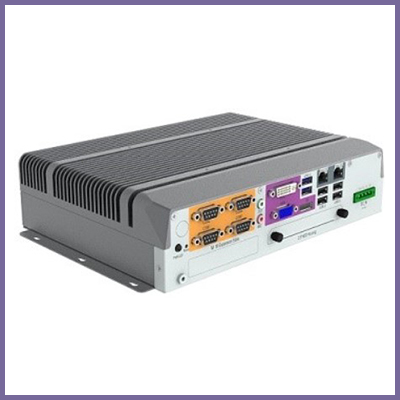

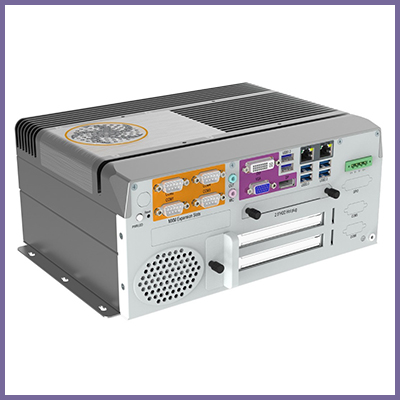

Designed with high performance in mind, multiple I/Os, fully supporting 6thor 7thCoreTM I3/I5/I7 LGA1151 pins Desktop multi-core CPU processors and with Q170 industrial grade chipset, the ABOX-E7 series is the ultimate embedded boxed PC! It supports dual-channels DDR4L laptop memory and max. single RAM up to 16GB. The range is composed of three different product forms, including; the ABOX-E7L, ABOX-E7D and ABOX-E7Q which are differentiated by the PCIe/PCI expansion ability. The standard ABOX-E7 is designed with; 4* COM 3*Display (DP+VGA+DVI) 6*USB3.0 2*GLAN High speed MXM3.0 interface Can be expanded to – 4*GLAN, 2*COM, and 18*GPIO options. The whole system is able to support 3 storage, RAID support, with 1x internal M.2 2242 interface, max. up to 512GB SSD, 1x hot-pluggable 5~9.5mm SATA HDD, and 1x 9.5mm 2.5’’ SATA storage position reserved internally. A series of boxed PCs with reliability being key to the whole design. With high computing performance, the best choice for machine vision and other industrial applications which request multiple PCIe/PCI expansion, such as measurement, industrial automation, security and high resolution medical computing applications. For more information on these products please visit our webpage – http://crystal-display.com/products/embedded-systems/ For more information including pricing and a data sheet please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.
