Core Monitors
Budget Friendly Professional Monitors
Adaptable 24/7 commercial grade AV monitor with simple digital signage media player
IPS Panel
With 450cd/m² the IPS panel shines brighter than any domestic television while delivering superior image quality and colour depth at 178° ultra wide viewing angle in both landscape and portrait orientations.
Narrow Bezel
A narrow bezel helps draw attention to the screens images and not the display for maximum impact messaging. Thanks to the
narrow bezel these monitors can also be used as part of a budget friendly video wall.
Built-in Media Player
These displays feature AV inputs and a built-in HD media player, enabling content playback directly from a USB drive. Simply load your pictures and videos onto a USB stick, insert it, and the screen will play them in a continuous loop.
- 24/7 Commercial Use
- Built in Speakers
- Power Timer
- LED Backlight
- Technology
- Smart Temperature
- Control System
Product Specification
Specification
Part Number
CDS-320-PM-X
CDS-430-PM-X
CDS-500-PM-X
CDS-550-PM-X
Diagonal
32″
43″
50″
55″
Resolution
1920×1080
1920×1080
1920×1080
1920×1080
Display Area
698.4×392.85
941.2×529.4
1073.78×604
1209.6×680.4
cd/m²
450
450
450
450
Overall Size
716.2×415.05×45.95
963.6×557.9×46.1
1090.4×621.3×56.9
1232×708.9×50.4
Weight
8.46kg
11.2Kg
18kg
19.45kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Contrast Ratio
4000:1
AV Inputs
Video
HDMI, VGA, BNC
Control
RS232
Audio
Audio Socket (3.5mm)
Speaker Type
5W, 8Ω (x2)
Environmental
Operating temp
0°C to 40°C
Storage temp
-10°C to 55°C
Operating Humidity
10% to 80%
Storage Humidity
10% to 90%
Media Player
Media Formats
Video (AVI, MP4), Audio
(MP3), Image (JPG,
BMP)

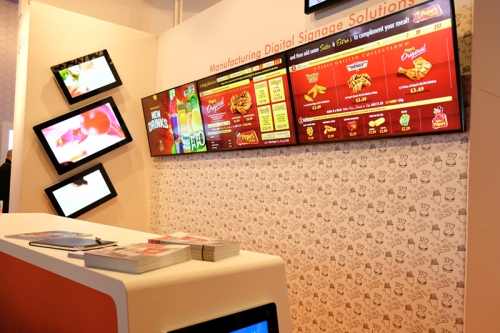

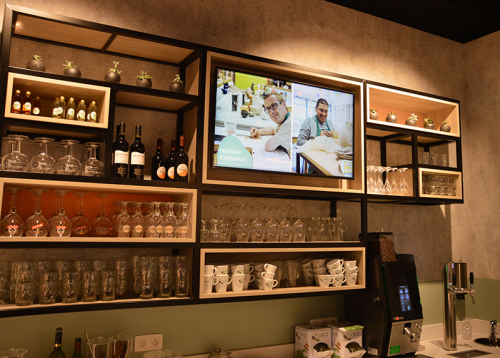

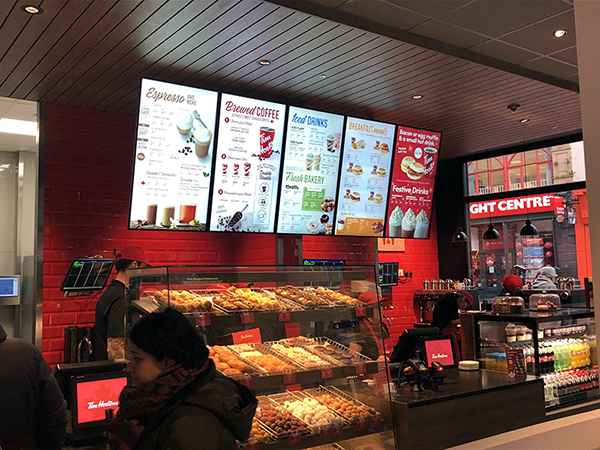

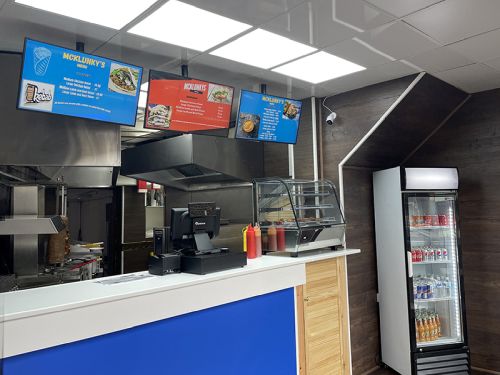

Application Examples
