High Bright Double Sided

Ultra High Brightness Hanging Double Sided Displays

Dual-sided Digital Signage Window Displays 3,500cd/m² Outward-Facing 1,000cd/m² Inward-Facing

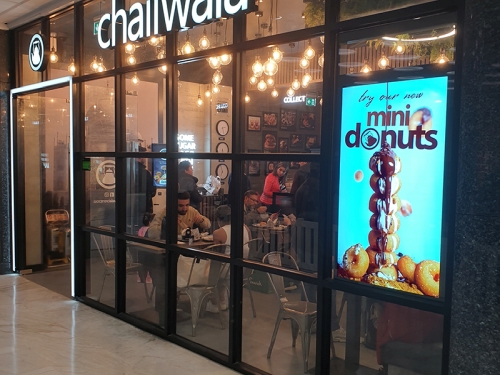

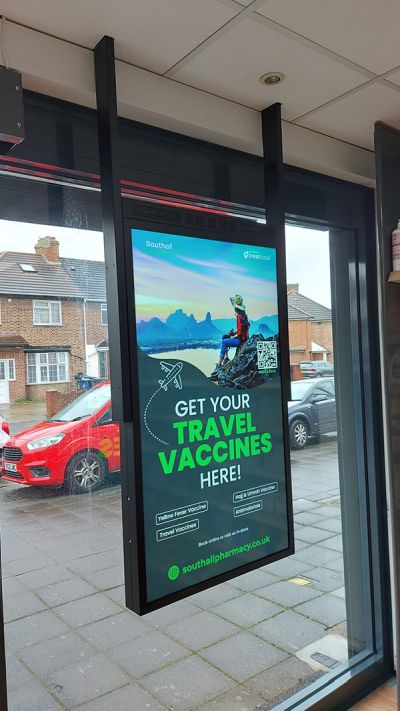

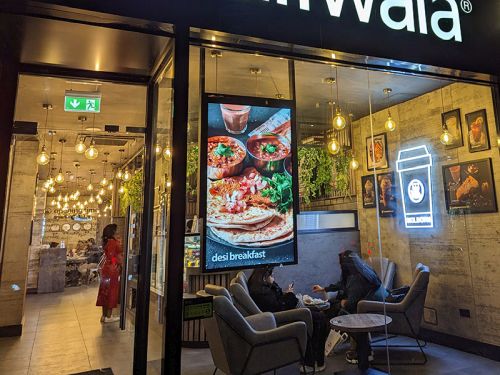

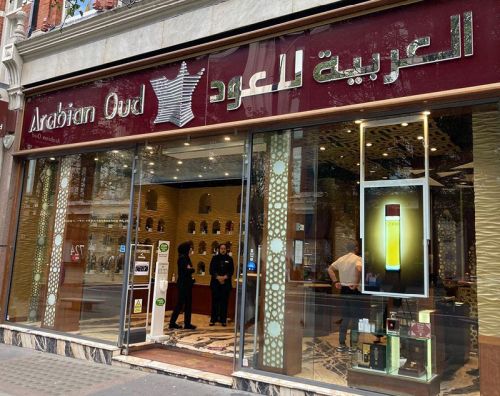

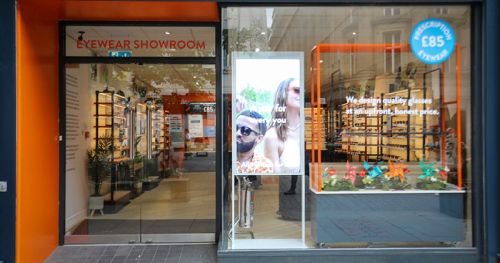

Perfect for Window Displays

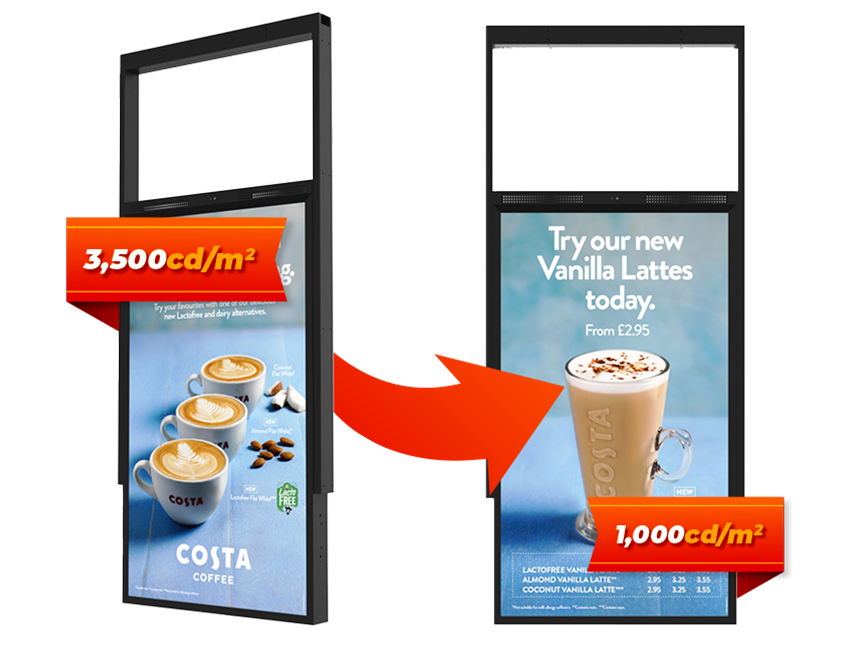

With a 3,500cd/m² outward-facing screen to
combat direct sunlight and a 1,000cd/m² inward
facing screen to combat brightly-lit indoor spaces,
these dual-sided displays are designed for
shopfront windows. On top of this, they are also
ultra resistant to blackening defect up to 110°C.

Different Content on Each Side

When using our user-friendly online CMS software,
you can really capitalise on the duality of these
displays by broadcasting different content on each
side. Tailor your messaging to people inside and
outside the building for maximum effectiveness.

Smart Temperature Control

The responsive internal airflow system keeps the
panel and other internal components at optimum
working temperature. This ensures a long and
reliable life for your screen, even when used
continuously in outward-facing windows.

Lightweight Slim Enclosure
Integrated Android Media Player
Ultra Resistant to Blackening
Accessible Ports
Freestanding Option Available

Product Specification

Specification

Part Number

CDS-490-DS-HB

CDS-550-DS-HB

Diagonal

49″

55″

Resolution

1920×1080

Display Area

1073.8×604

1209.6×680.4

cd/m²

3500/1000

Overall Size

1599.9x708x80

1804x786x80

Weight

28.4kg

48kg

Panel

Aspect Ratio

16:9

Colour

16.7M

Viewing Angle

178°

Blackening Defect Free

Up to 110°C (230°F)

AV Inputs

Video

HDMI

Audio

Audio Socket (3.5mm)

Speaker Type

8W, 8Ω (x2)

Environmental

Operating temp

0°C to 40°C

Surface Panel Temperature

110°C

Storage temp

-20°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%

Computer / media player

Media Formats

Video (MPG, AVI, MP4,
RM, RMVB, TS), Audio
(MP3, WMA), Image
(JPG, GIF, BMP, PNG)

Media resolution

1920×1080/1080×1920

CPU

Quad-Core ARM Cortex
A17, 1.6GHz

GPU

Quad-Core ARM Mali
T764

RAM

DDR3 2GB

Internal storage

8GB eMMC

USB

1 x USB (OTG/HOST), 4 x
USB (HOST)

LAN

100M/1000M Ethernet
(Network Version Only)

Wi-Fi

802.11b/g/n/ac
(Network Version
Only)

OS

Android 7.1

Graphic engine

OpenGL ES 1.1/2.0/3.0/3.1,
OpenCL 1.1, Renderscript,
Direct3D 11.1
