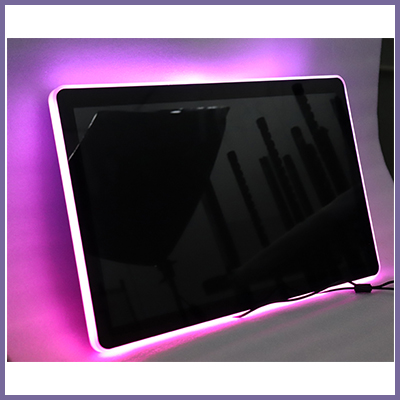

CDS Halo Monitors
Gaming

NEW PRODUCT – The 23.8 inch Halo PCAP Touch Monitor

Another new low cost gaming product launched by CDS! Our new Halo display is here! The incredible 23.8” halo PCAP touch monitor is the first in the range and is available now! With wide viewing angles, HDMI input, PCAP touch, high brightness, 2-year warranty and FC and CE certified. The 23.8“, 16:9, LED Backlight Monitor with 1920×1080 resolution and 1000:1 contrast ratio is more than impressive. Featuring 89/89/89/89 viewing angles and multiple ports including; VGA, HDMI, DP, USB and 10 points Projected Capacitive Touch Technology. Key Spec Info;  Screen diagonal dimension: 23.8 inch Viewable area W x H(mm): 529(H) x 298.5(V)mm Led Type: LED Pixel Pitch: 0.2745 x 0.2745mm Screen Maximum Resolution: 1920 x 1080 Colour Depth:  16.7 Million colours Brightness:  250 cd/m² Auto Adjust:  Yes Monitor Aspect Ratio: 16:9 Contrast Ratio:  1000:1 Response Time (ms):  8ms View Angle H/V(degrees):  178°/178° Port inputs:  VGA+DP+HDMI+USB Speakers:  Optional OSD Languages: English, Spanish, German, Chinese, French, Italian VESA Mounting Pattern: 100x100mm / 75x75mm Net weight: 6.65KG Gross Weight: 7.54KG Power- Watts (on and standby): < 35WPower input (External): 12V,4A Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -20℃ ~ 60℃ Operating Humidity: 10 ~ 85% Certifications: CE, FCC To check out more opportunities from our gaming range please visit – http://crystal-display.com/products/low-cost-gaming-monitors/ Or to discuss any projects you may have please contact us

Gaming

32 inch 1800R C Curved Open Frame Monitor with PCAP Touch

Newly launched 32 inch 1800R C Curved Open Frame Monitor with PCAP Touch. An Open framed solution with 5mm glass thickness, UHD curved monitor, R1800 curve with 700 cd brightness. Key Spec Info: Active area – 708.48(H) x 398.52(V)  mm Resolution – 3840(H) x 2160(V) VA, UHD panel Contrast ratio – 1000 : 1 Viewing angle – 89/89/89/89(LRUD) Input signal – HDMI, DVI, Display port Input voltage – DC24V, 7A Operating conditions – TEMP. 0~50, Humidity 10~80% Touch –  5.45mm +/- 10%, cover 5.0mm Touch – Response time Average < 25 ms Check out the complete range of curved monitors here – http://crystal-display.com/products/curved-monitors/ For more information on our Low Cost Gaming Monitors, Please click here Or simply contact us for more information, specs, quotes etc by emailing info@crystal-display.com or call our UK office +44(0)1634 327420

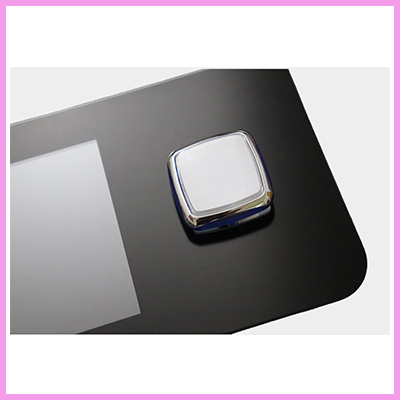

button deck displays from cds
Gaming

12 inch Button Deck Touchscreen Display Solution

CDS offers a range of button deck displays replacing physical buttons with a robust multi-touch PCAP touchscreen to create a modern looking sleek display solution  compared to the older more retro looking push buttons. As you see in the example below we can combine interactive touchscreen and push buttons within the same Button deck solution. Custom designs also available or copying your current solution to save you money and improve it in a number of areas if you require. Key Features; 800nits brightness 12.3” LED Backlight Monitor 1920×720 resolution 1000:1 contrast ratio Port: DP, DVI, VGA, USB (for touch only) Projected Capacitive Touch Technology,10 multi touch Anti-glare touch glass 3mm touch glass Power cord, VGA cable, USB cable included CE, FCC If you have a specific project of requirement please contact us and we will support you and work closely with you to get the optimum solution for your machine. For more information on our Low Cost Gaming Monitors, Please click here Or simply contact us for more information, specs, quotes etc by emailing info@crystal-display.com or call our UK office +44(0)1634 327420

CDS ice gaming show
Gaming

Thank You for Visiting us at ICE Totally Gaming

We want to say a huge thank you to all of our visitors at ICE Totally Gaming. WE thoroughly enjoyed the show and have made many new contacts who we can’t wait to work with. What a success! If you missed it, please do not fret! We introduced two of our most impressive latest offerings at the show which you can see in the below YouTube videos. Our PCAP plus touch overlays are explained by our Sales Manger Ash Hawkes in the below YouTube vidoeo; These are ideal for durable applications and are able to sense through 11mm of glass for single touch and 6mm multi touch. As well as this we also introduced our 43 inch PCAP touch monitor which was well received by a large audience. What an amazing experience ICE Totally Gaming was for CDS and as you can see the interest was amazing and we apologise if you could not get to our booth with the large number of visitors to see the new solutions but please let us know your requirements we will make you an excellent proposal to save you money and visit you with samples where needed. For more information on our open frame monitors please visit http://crystal-display.com/products/open-frame-monitors/  Or to see what other gaming monitors we can offer please check out our full range of gaming monitors.  Do not hesitate to contact us with any questions or information or for pricing as we would love to discuss your projects and requirements before the show if needed. For more information including pricing and a data sheet please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.

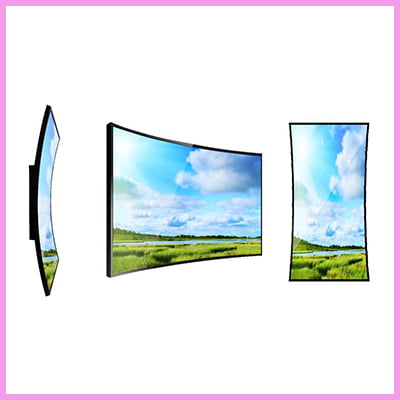

CDS curved lcd display
Gaming

CDS Have Done it – The Highest Quality, Most Reliable Curved Display

Check out the new CDS MO-430-CRV-500-L! An impressive 43″ Industrial Grade Curved LCD Monitor with FHD 1920 x 1080 resolution and radius of 1,500mm. The MO-430-CRV-500-L is a 43 inch industrial grade curved monitor, with a state of the art 500 cd/m2. LED backlight with high color saturation, enabling it to produce sharp images, crisp text and lifelike colours. We have done extensive testing with curved displays to ensure we are offering the highest quality, most reliable displays suitable for industrial applications, such as gaming, kiosk, retail, digital signage, military, medical and many others. Key Spec Info; Screen Size: 43” Display Area (mm): 940.896(H) x 529.254(V) Brightness: 500 cd/m2 Resolution: 1920×1080 Aspect Ratio: 16 : 9 Contrast Ratio: 3000 : 1 Viewing Angle: 178°(H),178°(V) Panel Interface: LVDS AD Board Input Interface: VGA, DVI-D, DP Dimensions (mm): 970 x 559.8 x 153 Operating Temperature: 0 ˚C ~ 50 ˚C Storage Temperature: -20 ˚C ~ 60 ˚C For the full spec, lead time and pricing please contact us directly. For more information on our Low Cost Gaming Monitors, Please click here Or simply contact us for more information, specs, quotes etc by emailing info@crystal-display.com or call our UK office +44(0)1634 327420

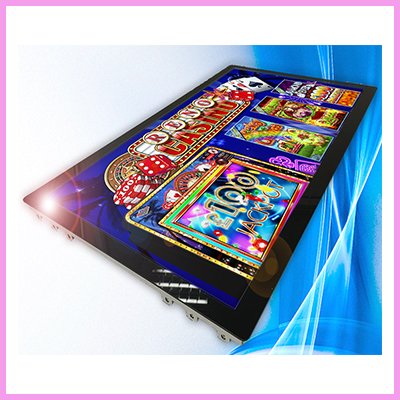

CDS gaming monitor
Gaming

ICE and the Future in Gaming for CDS

A few questions and answers for the lead up to the ICE gaming show (where CDS will make their first appearance) :), a reflection on 2017 and beyond. What new products/services/announcements have you got lined up for ICE? We are probably the best kept secret in the Gaming / Casino monitor world as we are supplying some Gaming customers products that match (or exceed) the quality of the major manufacturers whilst offering them at a much lower price, but many companies are unaware of this and could benefit immediately! Open frame monitors: We will introduce our full range of open frame monitors from 6.5” up to 65” with various inputs including VGA, DVI, and HDMI. Multi-Touch monitors: Our new robust range includes 6.5” up to 65” multi touch utilising Resistive, SAW, Capacitive and PCAP touch technologies. Display Kits only: Some clients only want panel + interface card and they will assemble these into their housing or metal work, so these low-cost kits offer them an excellent solution. Ultra-wide Stretched panels (Bar type): CDS will show many size/Resolution/brightness examples from its wide range (thought to be the widest in Europe from 4.3”-55” diagonals). Thruu-Glass: CDS has a wide range of these projected capacitive touchscreens (with NO WIRES!) that can work excellently through a sacrificial top layer of oversized glass for a very attractive sleek finish. TRANSPARENT DISPLAYS: This amazing technology, although niche in the Gaming world, offers some companies amazing opportunities for promotion and to create that WOW factor at Expos and their demonstration rooms. Touch foils: CDS can offer custom touch foils that can be applied on the back of glass to create a thru touch solution with 40 touchpoints, and giving a very flexible solution. As you can see CDS is a major one stop shop for high quality and reliable displays and monitors for the Gaming / Casino industry. How important is ICE to your company? As the first time we have exhibited it is a vital part of our marketing campaign to raise the profile of our products / services and quality focused company.  Being able to invite several of our prospects across Europe to see our products and discuss projects and their requirements face to face and in more detail, will be invaluable. We hope many visitors will come and see us at our booth to see what all the fuss is about amongst our competitors! How has 2017 been for you as a company? Which products/services have been successful for you recently and how do you plan to build on this? 2017 has been very good for us as more Gaming and Casino manufacturers have become aware of our products and services and given us the chance to supply samples for evaluation and test, which have led to a growing order book and more success in these markets. What does 2018 hold for you? Our order book is strong, and we are continuing a growth trend regardless of ICE, but believe that if ICE is successful for us we will go to the next level and a lot of our competitors in the Gaming / Casino will lose out as we have demonstrated in 2017 that our pricing, speed to market, product knowledge and reliability is second to none.  We just need the opportunity from some of those company buyers that are stuck with their current suppliers and do not like change to give us that opportunity, as they will not look back and wonder why they had not come to us before. We really believe with the help of ICE and publications like Intergame 2018 will be a bumper year for CDS in the Gaming / Casino markets! What do you see as the focus/trend for your sector going forward? As the LCD monitors / touch monitors are one of the most expensive components in any Gaming / Casino machine these will be a real target for cost reduction, which we can help customers with and achieve.  But also, higher resolution and higher brightness panels whilst not being more expensive will become a focus as well as for some projects Ultra High Definition panels for greater detail etc. On the touch front more, ruggedness and reliability is requested and as our PCAP screens can work through and additional 7mm (sometimes 11mm!) glass panel this is giving customers greater options to protect their screen from damage and so saving them money in servicing and replacements! Which products have been successful for the company recently? Although most open frame monitors have had a good year the focus has been in the sizes 21.5” / 24” / 27” Full HD widescreen monitors plus the equivalent PCAP multi-touch versions sometimes being taken as a pair with the top display being for information only and the lower display being the interactive touch display for the player.  So, our clients take the whole digital display solution for their machines. If this is of interest, please email your requirement / project details to mudge@crystal-display.com and we will evaluate the requirement for you and come back to you with a proposed solution. Find out more about our latest Low Cost Gaming Monitors. For further information please visit our gaming displays website http://crystal-display.com/products/low-cost-gaming-monitors/ If you have a project that you would like to discuss then please contact us via info@crystal-display.com or call +44 (0) 1634 327420.

CDS Gaming free sample
Gaming

FREE of Charge Gaming Samples!

CDS are offering FREE OF CHARGE samples for our open frame products to help customers change, develop and approve their innovative solutions. Here at CDS we understand most companies want to see the physical product in their hands before risking any budgets on samples which don’t fit the bill so why not take a chance? We can also replicate monitors you already have installed to save you money and provide a better supply chain that can customise and hold stock for you! We supply multiple open frame and chassis mount Touchscreen monitors (and non-touch) for several industrial and commercial customers replacing major brand manufacturers and saving our customers money at the same time! This offer is also available for new projects. We are offering FREE OF CHARGE SAMPLES for selected projects* for you to evaluate and approve so you can have a smooth transition from your current supplier to a lower cost, but still high-quality solution. We can make a custom monitor for you or copy your current solution at no cost and therefore NO RISK to you! If this is of interest, please email your requirement / project details to mudge@crystal-display.com and we will evaluate the requirement for you and come back to you with a proposed solution. Check out our full range of Low Cost Gaming Computers For further information please visit our gaming displays website http://crystal-display.com/products/low-cost-gaming-monitors/ If you have a project that you would like to discuss then please contact us via email or call +44 (0) 1634 327420.

CDS ICE Gaming
Gaming

CDS to Exhibit our Latest Open Frame Monitors at ICE

CDS to exhibit its latest open frame monitors and touch monitors as well as ultra-wide stretched monitors at ICE Expo in London in February! WHAT?- The most international business event in gaming, ICE TOTALLY GAMING WHEN?- 6-8th Feb 2018 WHERE?- Booth S9-339, The Excel London, UK WHY?- BECAUSE WE CAN SAVE YOU MONEY!!! If you are purchasing open frame monitors, touch monitors or custom monitors from any of the above suppliers please contact us or visit our booth at the ICE Expo in February as we believe we can save you money. More importantly, we believe we may be able to improve on the monitors you are currently receiving to give you the best solution with local support. Spares, repairs and stock holding all under one roof! We look forward to hearing from you and please click on the links below to go to our relevant product pages; OPEN FRAME MONITORS We have a vast range of open frame monitors; 6.5″ to 84″ available with up to 4K resolutions available Long term stability of mechanical design with VGA, DVI, HDMI, DisplayPort, and Video etc interfaces Various built in touchscreen options with RS232 / USB communication optional (for touch) Excellent design to optimise air flow / heat dissipation, and minimal footprint with fine finishing with good looking black powder coated chassis (option) and more. TOUCH MONITORS Our wide range of ultra-reliable touch monitors are suitable for a wide range of applications including those that need a small slim structure for space sensitive projects as well as very large format interactive displays. Options and features include resistive, SAW, Infra-Red and PCAP touchscreen options. Ruggedised touch with vandal resistant coverglass and custom designs and sizes available. Follow the links to check out more features in the range. STRETCHED DISPLAYS WITH BRIGHTNESS UP TO 2,000 NITS We have an amazing, vast range of ultra-wide stretched displays to offer you! Enclosed monitors as well as panels and kits for integration. Sizes available from 6.2″-86″, Native & Cut, Hibrite/sunlight readable options, ultra slim point of sale options, high resolution, ultra-wide viewing angles, transparent versions, square versions and landscape & portrait options. As well as this we also have added a new small format Letterbox TFT range! We can increase the brightness for many of our wide stretched displays to 2,000 nits with no tooling fee. 42 INCH CURVED DISPLAY FOR GAMING Check out the new Full HD 42 inch Curved LCD Display Ideal for Gaming. A 42” W Curved LCD, with VGA+DVI Inputs, PCAP Touch (Multi), Adaptor and Power Cord. Full HD, 350 nits, 50,000 hours lifetime and so much more. HOLD TIGHT FOR MORE ICE TOTALL GAMING UPDATES COMING IN THE NEW YEAR! Do not hesitate to contact us with any questions or information or for pricing as we would love to discuss your projects and requirements before the show if needed. For further information please visit our gaming displays website http://crystal-display.com/products/low-cost-gaming-monitors/ If you have a project that you would like to discuss then please contact us via email or call +44 (0) 1634 327420.

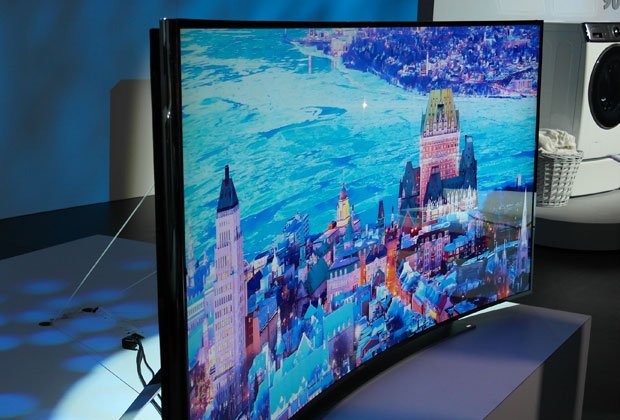

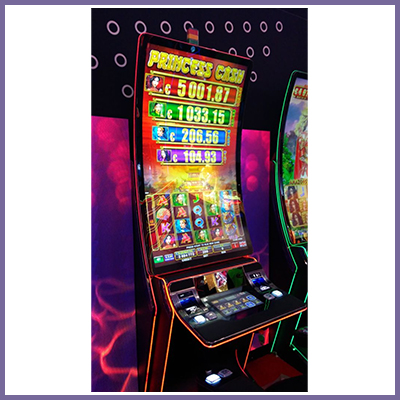

CDS curved display
Gaming

42 inch Curved LCD Display Ideal for Gaming

Take a look at the new Full HD 42 inch Curved LCD Display Ideal for Gaming. A 42”W Curved LCD, with VGA+DVI Inputs, PCAP Touch (Multi), Adaptor and Power Cord. Key spec info; 42″ screen size based on an LG panel 1920 x 1080 resolution 350 nits brightness 50,000 hours lifetime 876(H) X 523(V) mm active area 948.81 (H) X 589.9 (V) X 217.91 (D) mm outer dims Viewing angles – 89˚/ 89˚/ 89˚/ 89˚(Typ.) Storage temp -20 ~ 60°C Operating temp- 0 ~ 50°C PCAP touch For more information on our Low Cost Gaming Monitors, Please click here Or simply contact us for more information, specs, quotes etc by emailing info@crystal-display.com or call our UK office +44(0)1634 327420   Check out our latest range of Stretched Bar Type Monitors

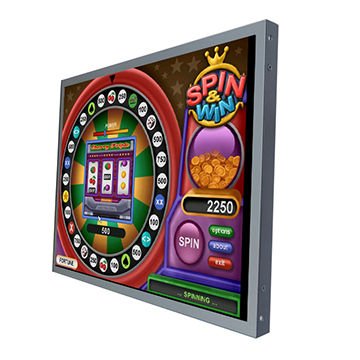

open frame gaming monitors
Gaming

NEW Split Screen Gaming Displays

Check out the new range of split screen monitors for gaming. This newly developed Split Screen Mode with 4K UHD resolution is available in 43″, 49″, 55″, 65″, 75″, 84″ and 85″. Dual, triple or even quad split screens with further details in the image below;   For more information on our Low Cost Gaming Monitors, Please click here For more information on our low cost gaming monitors click here Or simply contact us by emailing info@crystal-display.com or call our UK office +44(0)1634 327420
